DM9 Digital Microscope 1200X Soldering Microscope for Coin 12MP PCB Circuit Repair

DM9 Digital Microscope 1200X Soldering Microscope for Coin 12MP PCB Circuit Repair

Light Source Type: 8 LEDs + 2 gooseneck light

Model Name: DM9

Material: Metal, Plastic

Color: Black

Product Dimensions: 10"H x 7.1"W x 6.5"L

Real Angle of View: 16 Degrees

Magnification Maximum: 1200X

Item Weight: 2.65 Pounds

Voltage: 3.7 Volts

Introduction

Place of Origin:	China
Brand Name:	Microlong
Model Number:	DM9
Certification:	CE, FCC, ROHS
Minimum Order Quantity:	1 PC
Price:	$59.99

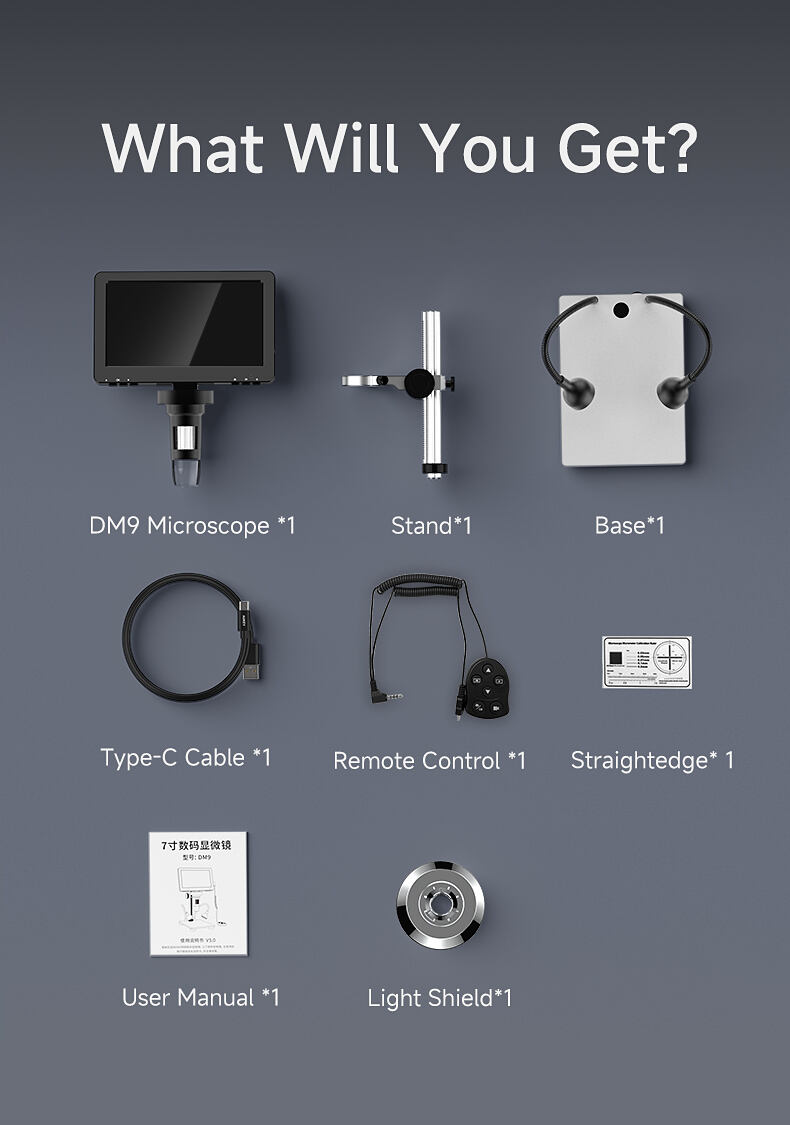

Packaging Details:	7-inch digital microscope *1
	Metal bracket *1

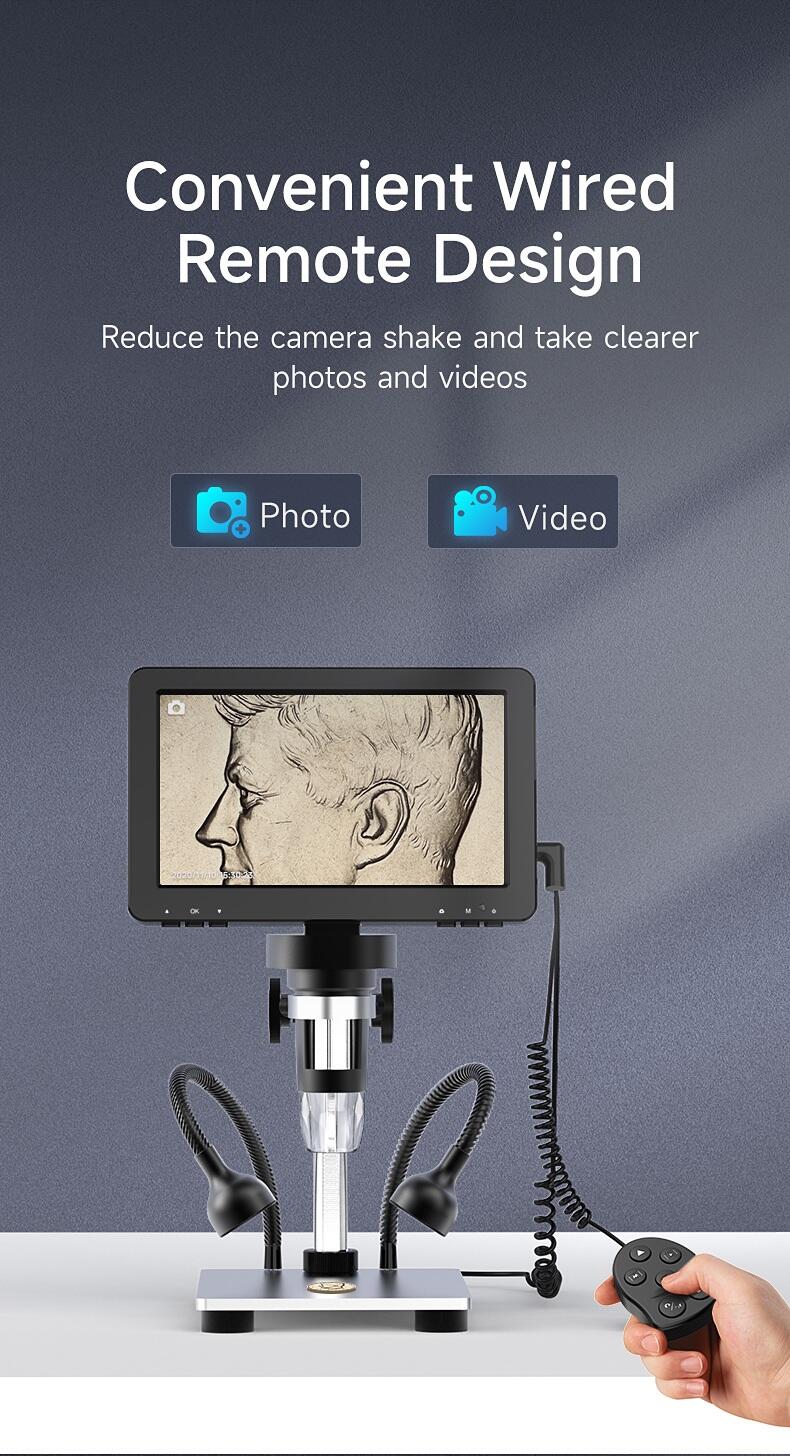

	Remote control *1
	Light shield *1
	Straightedge *1
	User manual*1
	Type-C cable *1
Delivery Time:	5 days
Payment Terms:	T/T

Description:

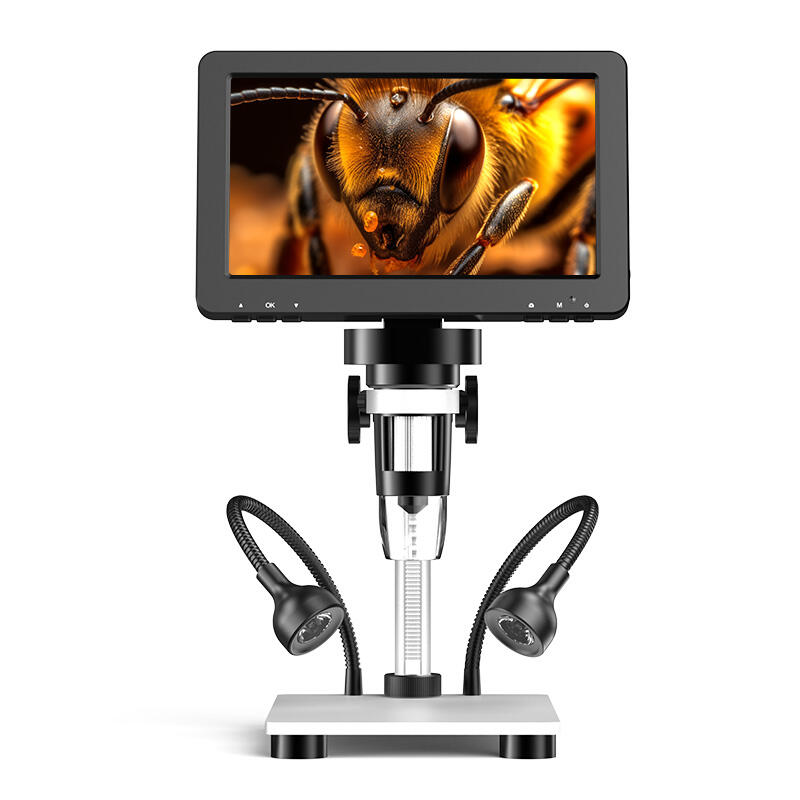

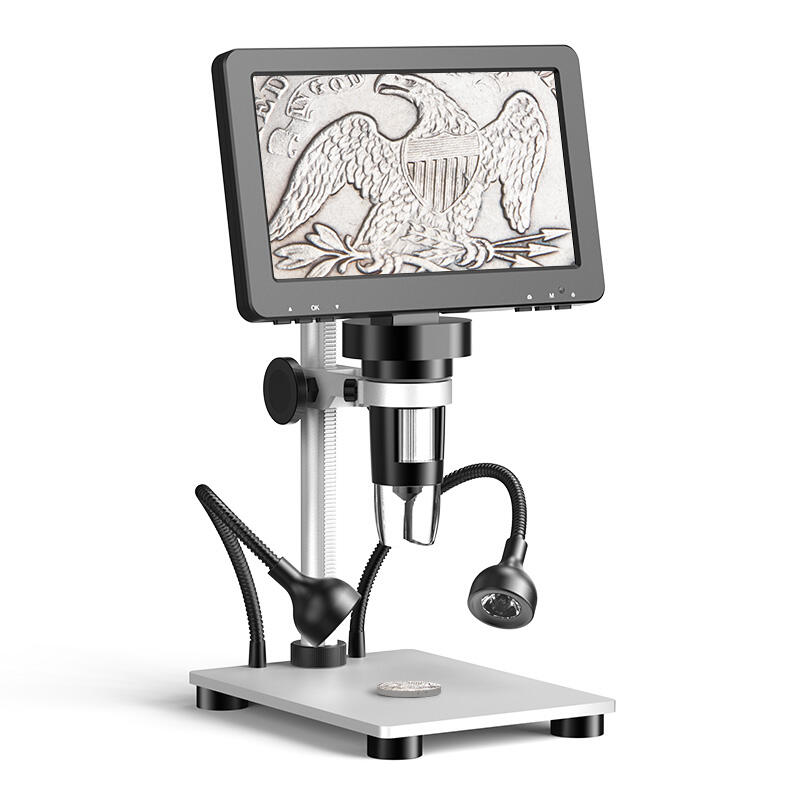

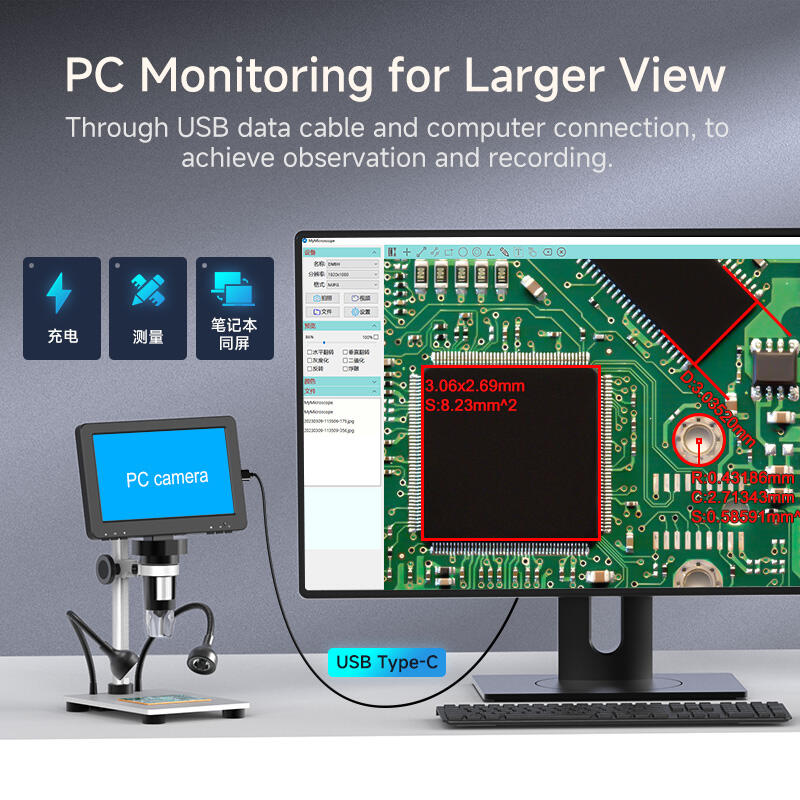

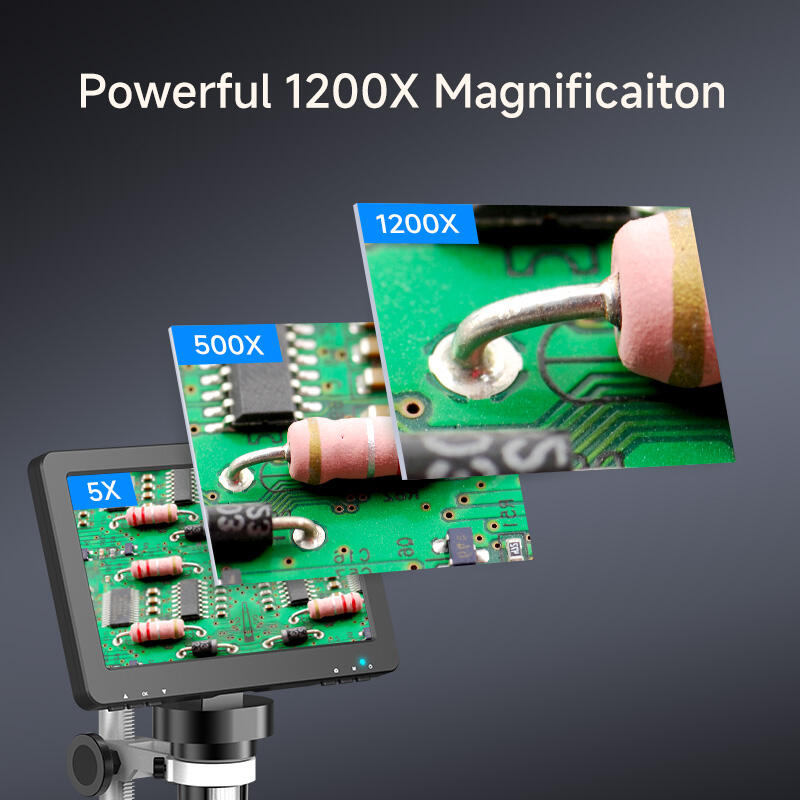

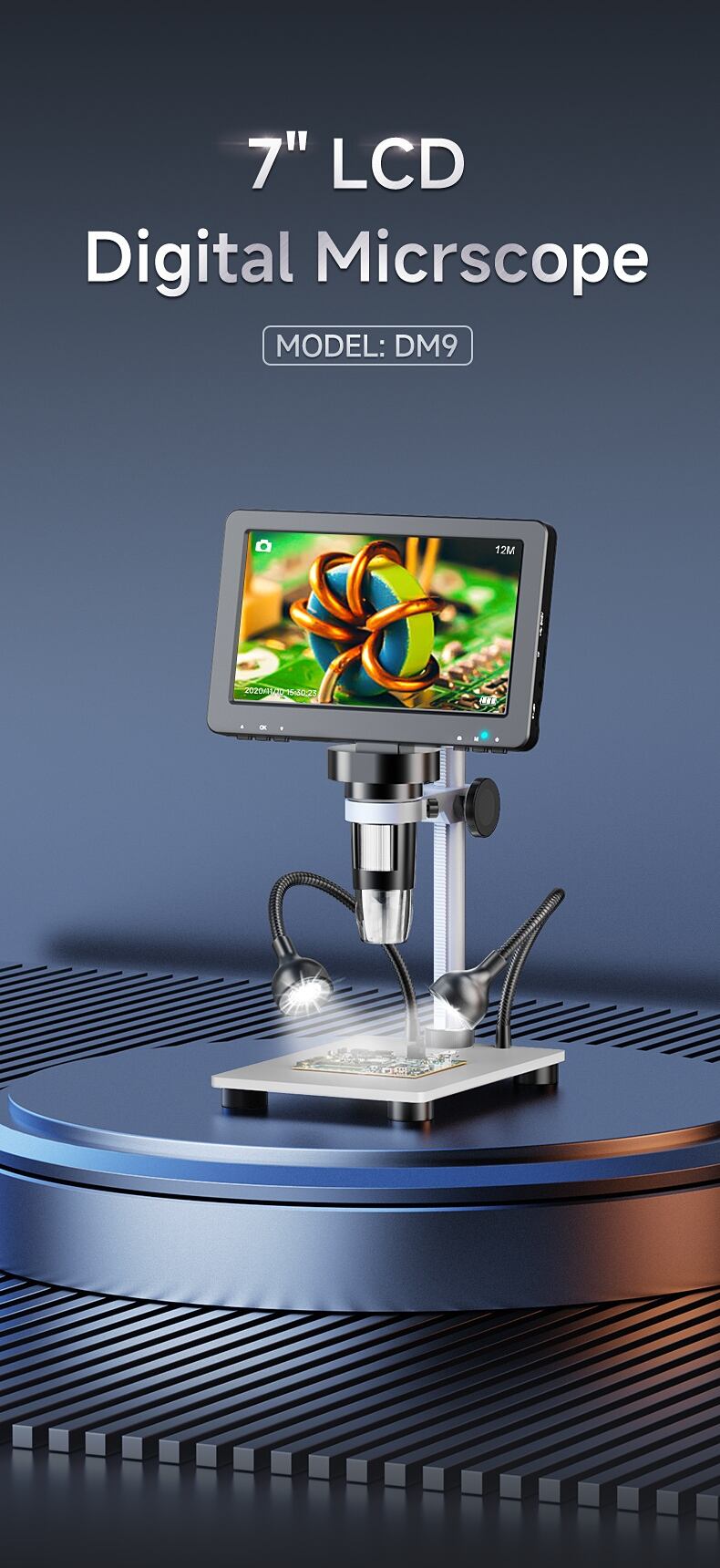

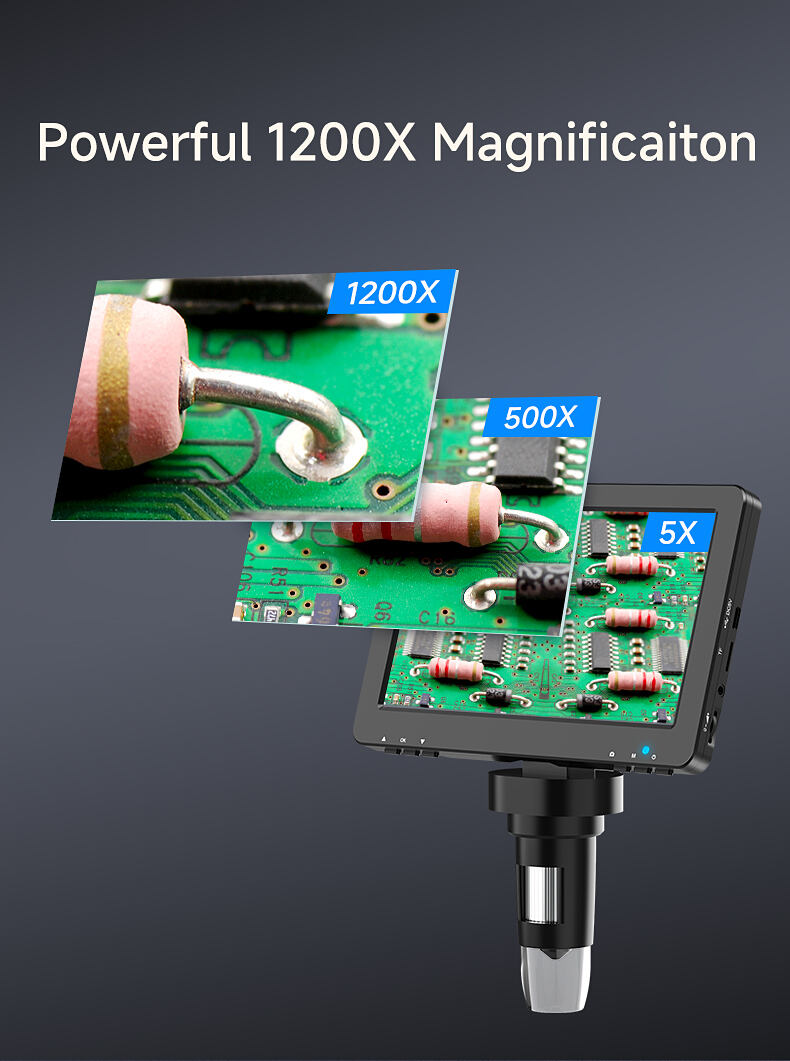

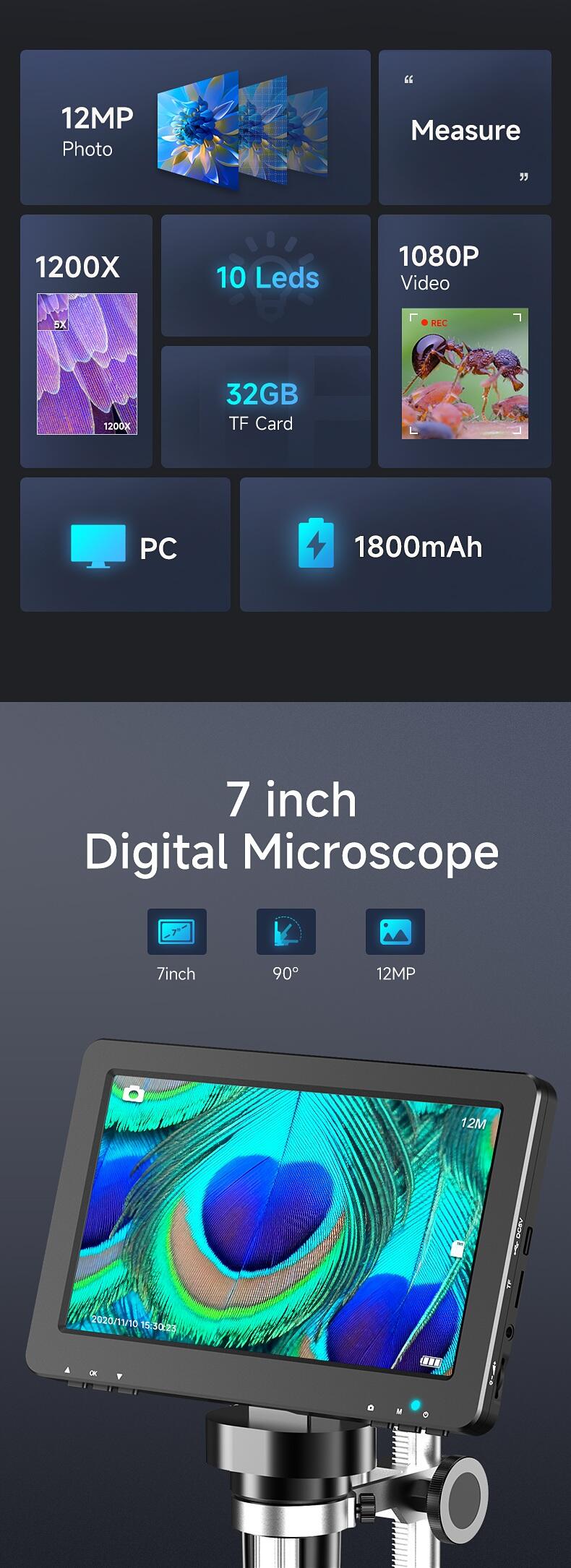

This digital microscope with a 7-inch screen is a versatile and user-friendly tool designed for a wide audience, including adults, students, and young learners. Its core strength lies in a 5X to 1200X magnification range, empowered by a 12MP camera and 1080P FHD imaging, which allows for the detailed observation of objects from stamps and coins to micro-soldering projects. The experience is enhanced by a rotatable 90-degree screen for ergonomic comfort and a combination of 8 built-in LED lights plus two supplemental gooseneck lights for optimal illumination. Constructed with a solid metal frame, it promises durability for demanding tasks like PCB repair. For larger viewing and analysis, it easily connects to PCs (Windows/macOS) without extra software. It also supports high-resolution photo (up to 12MP) and video (up to 1080FHD) capture, making it perfect for education, hobbies, and professional applications while fostering interaction between parents, children, teachers, and students.

Applications:

Circuit board repair

Coin and stamp collecting

Skin inspection

STEM education

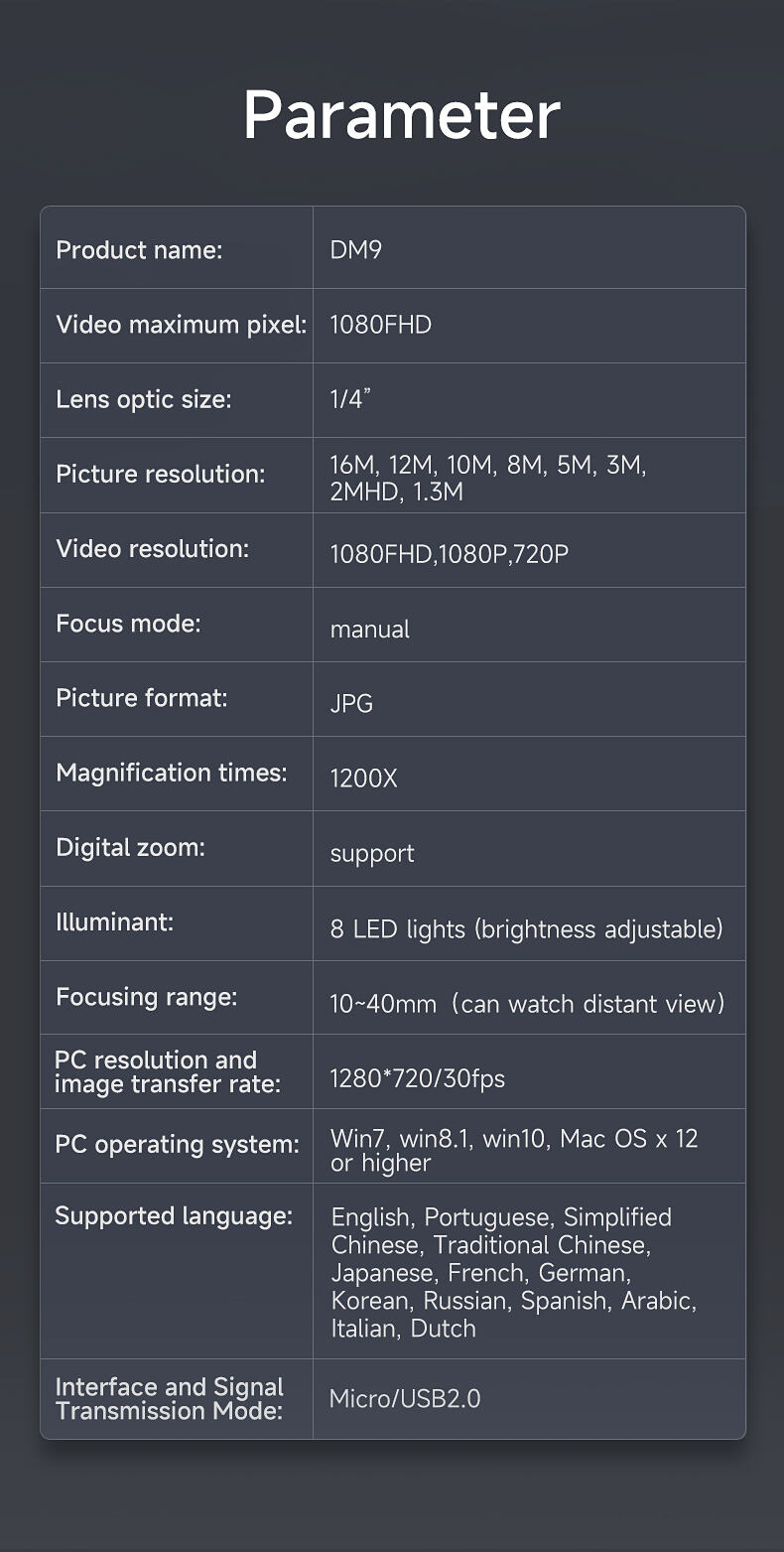

Specifications:

Item	Parameters
Product name	DM9
Screen	7 inches IPS screen
Video maximum pixel	1080FHD
Lens optic size	1/4”
Picture resolution	16M, 12M, 10M, 8M, 5M, 3M, 2MHD, 1.3M
Video resolution	1080FHD, 1080P, 720P
Date format	AVI
Focus mode	Manual
Picture format	JPG
Illuminant	8 LED lights (brightness adjustable)
Focusing range	10~40mm（can watch distant view）
PC resolution and image transfer rate	1280*720/30fps
White balance	Automatic
Exposure	Automatic
PC operating system	Win7, Win8.1, Win10, Mac OS x 10.5 or higher
Supported language	English, Portuguese, Simplified Chinese, Traditional Chinese, Japanese, French, German, Korean, Russian, Spanish, Arabic, Italian, Dutch
Lens construction	2G+IR
Aperture	F4.5
Lens angle	16°
Interface and Signal Transmission Mode	Type-C
Operating temperature	-20°C ~ +60°C
Operating humidity	30%~85%RH
Working current	700mA
Power dissipation	3.5W

Competitive Advantage:

As a source factory, our core competitive advantages are rooted in our integrated manufacturing capabilities. We exercise strict quality control over the entire production process, from sourcing raw materials to final assembly, ensuring high product consistency and reliability. Our direct-to-customer model eliminates intermediary markups, allowing us to offer superior products at highly competitive prices. Furthermore, we maintain strong R&D and customization capabilities, enabling us to adapt quickly to market trends and provide OEM/ODM services to meet specific client requirements. This combination of quality, cost-effectiveness, and flexibility provides our partners with a distinct market edge.
