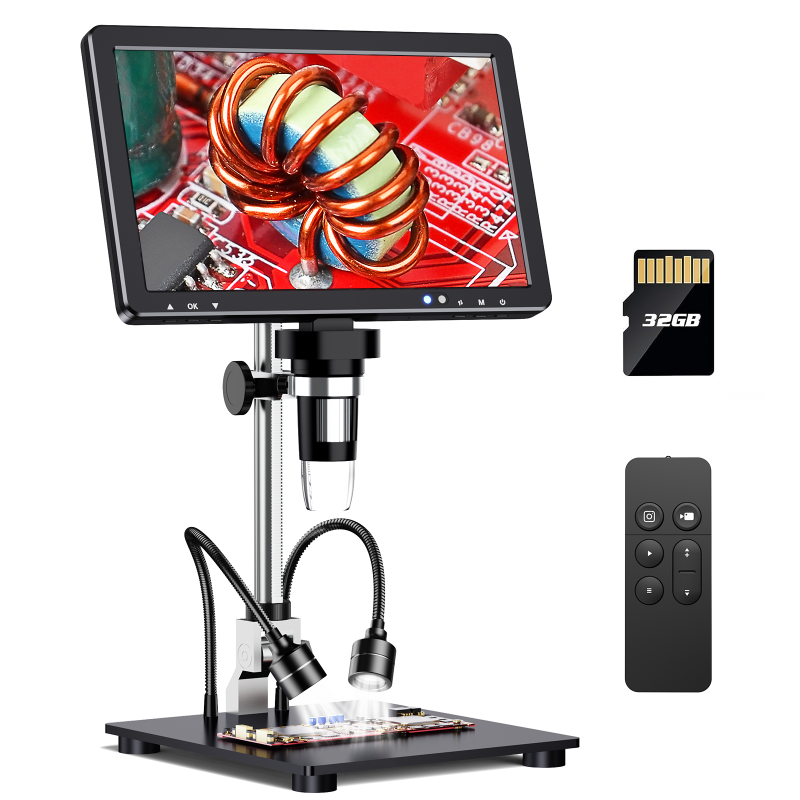

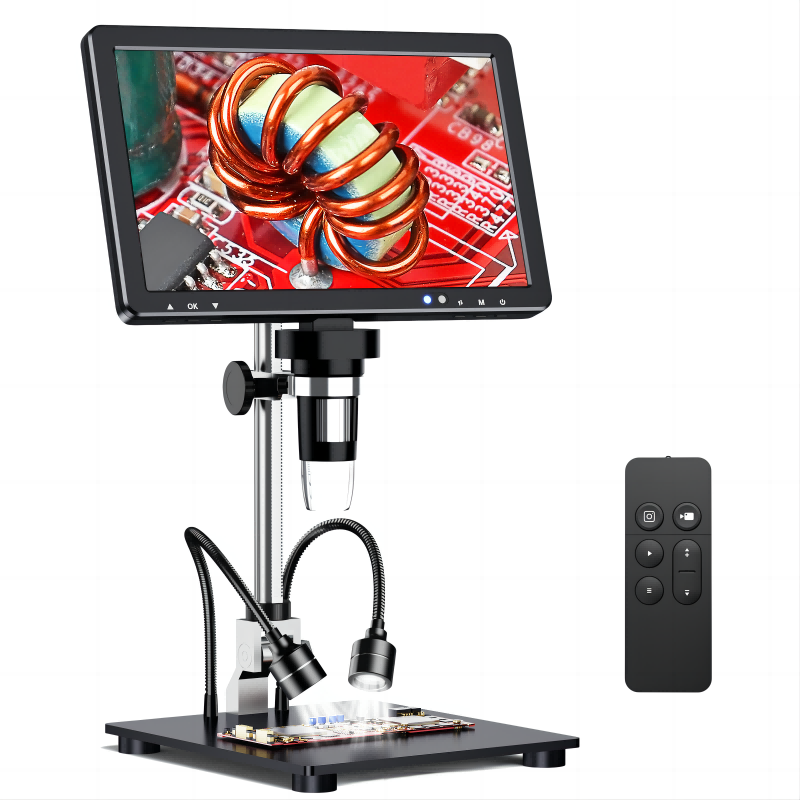

DM12 10.1-inch HDMI Digital Microscope 2000X Coin Microscope with 10 LEDs

DM12 10.1-inch HDMI Digital Microscope 2000X Coin Microscope with 10 LEDs

Light Source Type: 8 LEDs + 2 gooseneck light

Model Name: DM12

Material: Metal, Plastic

Color: Black

Product Dimensions: 16"H x 10"W x 7.9"L

Real Angle of View: 16 Degrees

Magnification Maximum: 2000X

Item Weight: 4.4 Pounds

Voltage: 3.7 Volts

Introduction

Item	Parameters
Product Name	DM12
Screen	10.1 inches IPS display, 1024*600 resolution
Video Maximum Pixel	1080P
Lens Optic Size	1/2.8"
Photo Resolution	20M, 16M, 12M, 8M, 5M, 2M
Video Resolution	1080P, 720P
Video Format	MP4
Focus Mode	Manual
Picture Format	JPG
Illuminant	8 LED lights (brightness adjustable)
Focusing Range	10~40mm（can watch distant view）
PC Resolution and Image Transfer Rate	1280*720/25fps
White Balance	Auto
Exposure	Auto

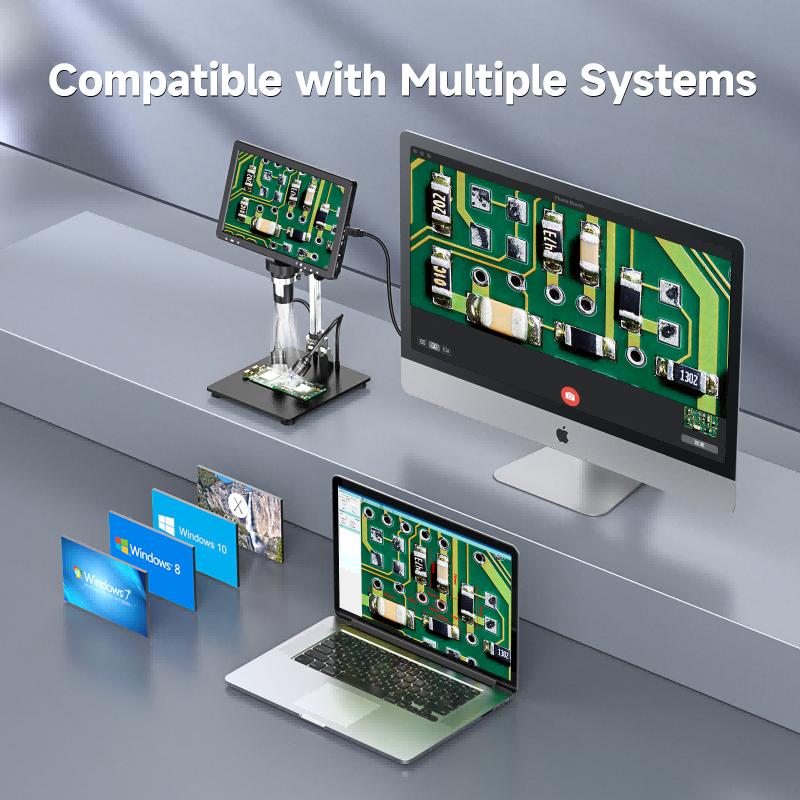

PC Operating System	Win7, Win8.1, Win10, Mac OS x 12 or higher
Lens Construction	5H+IR
Aperture	F4.5
Lens Angle	16°
Interface and Signal Transmission Mode	Micro / USB 3.0 / HDMI
Operating Temperature	‘-20°C ~ +55°C
Operating Humidity	30%~85%
Working Current	700mA
Power Dissipation	3W
Operating Time	3h
Charging Time	3h
Language	Simplified Chinese, Traditional Chinese, Japanese, English, Korean, French, German, Italian, Russian, Portuguese, Spanish
Polymer lithium battery	103665-3000mAh

Description:

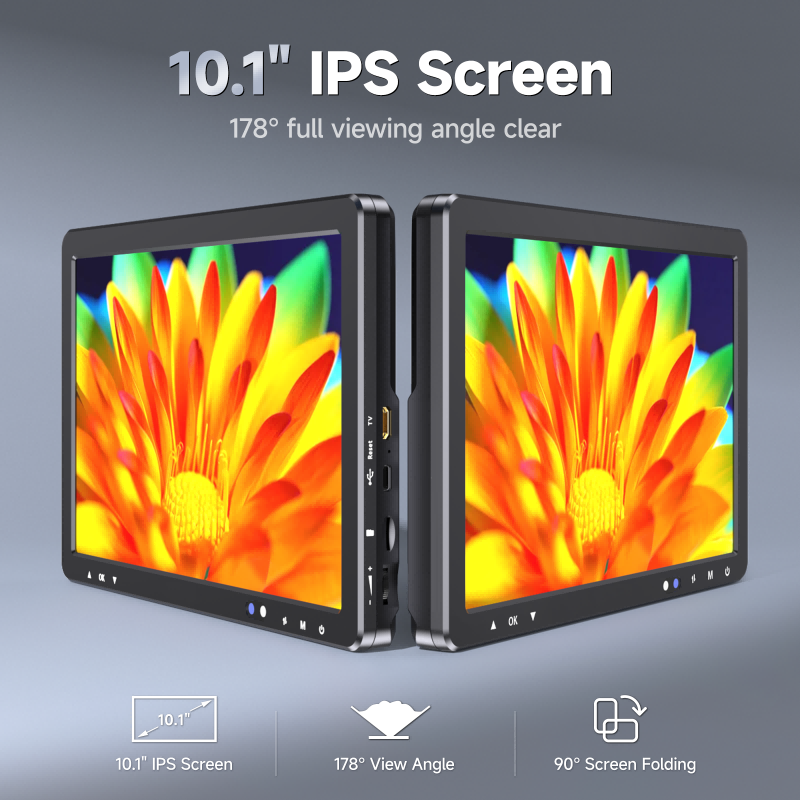

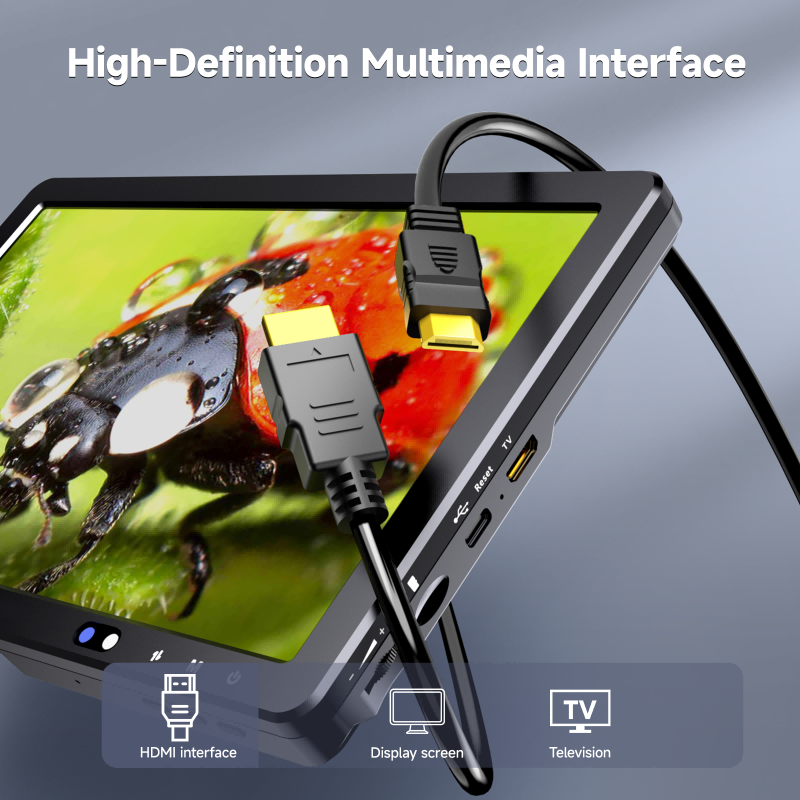

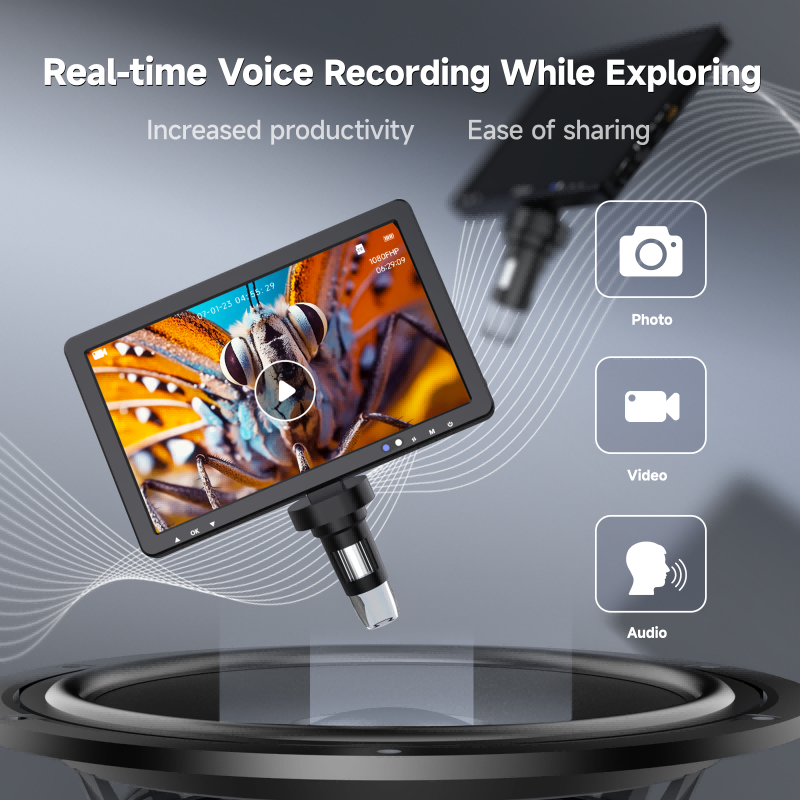

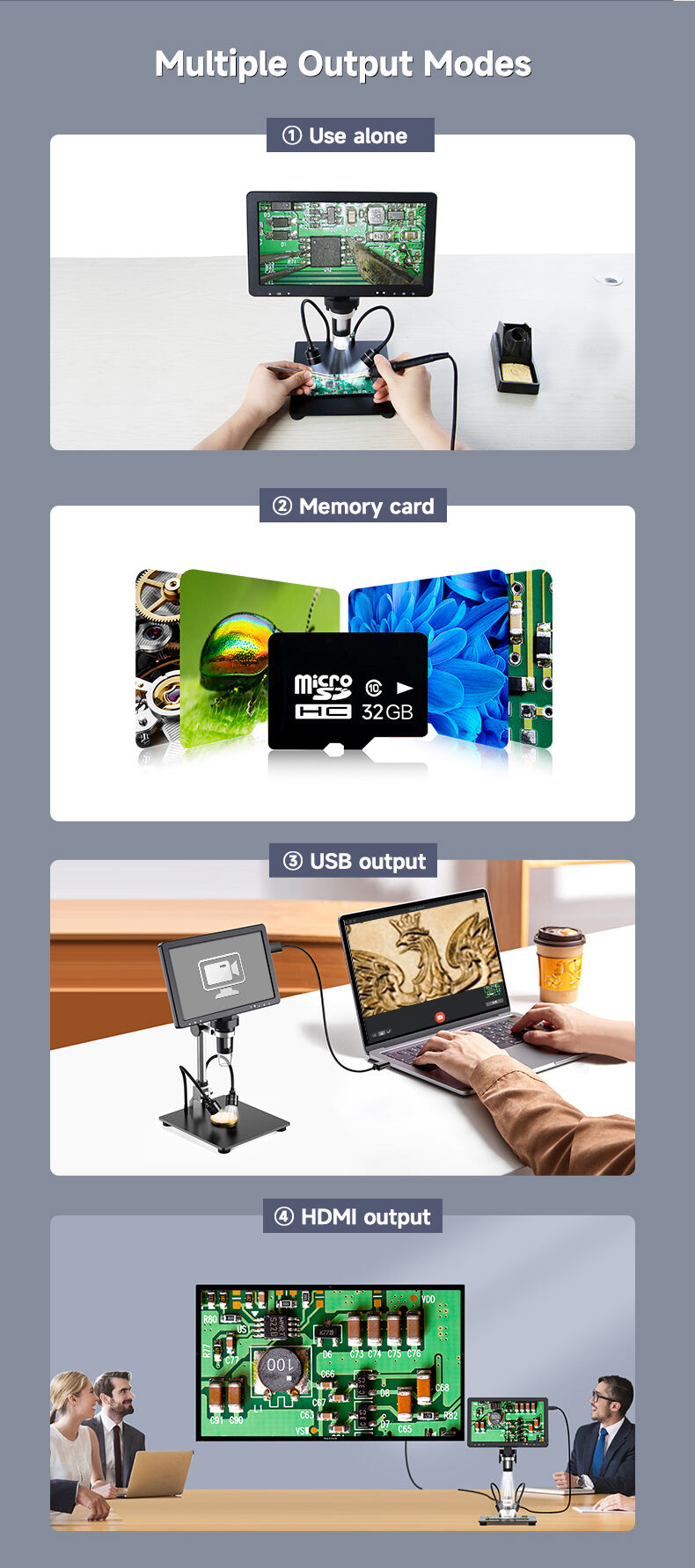

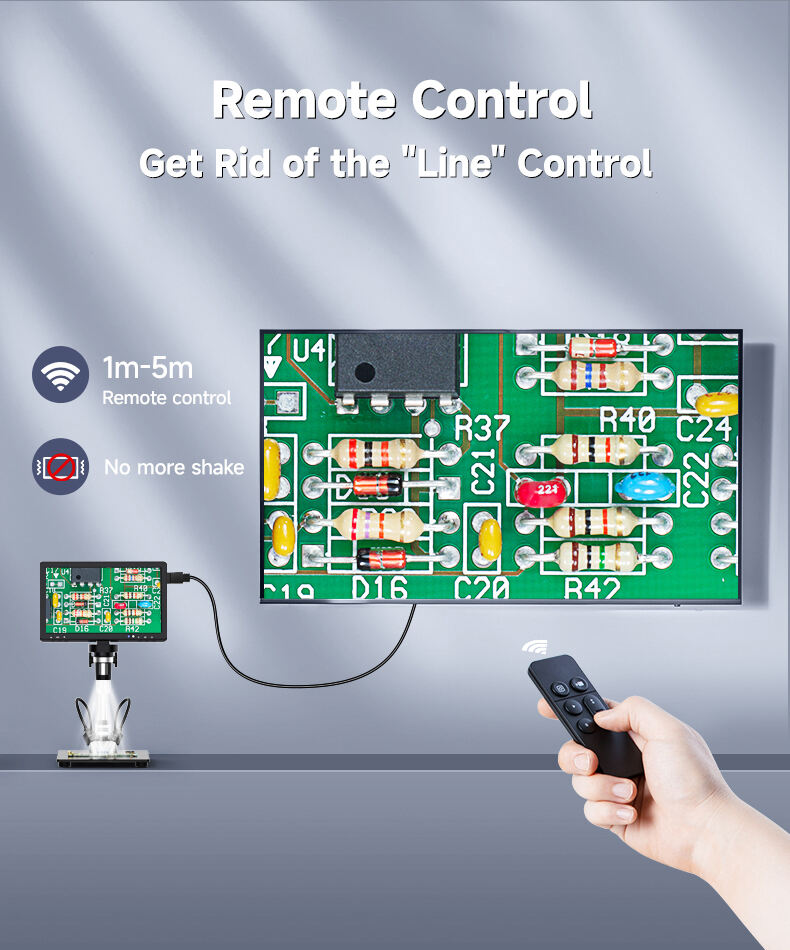

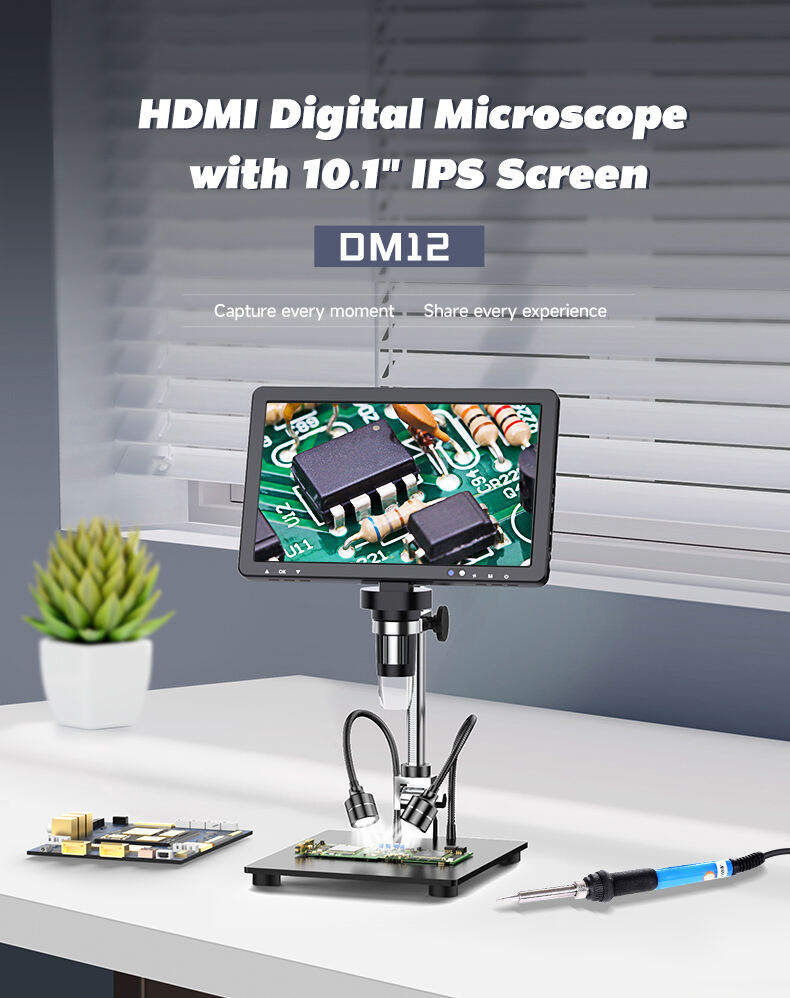

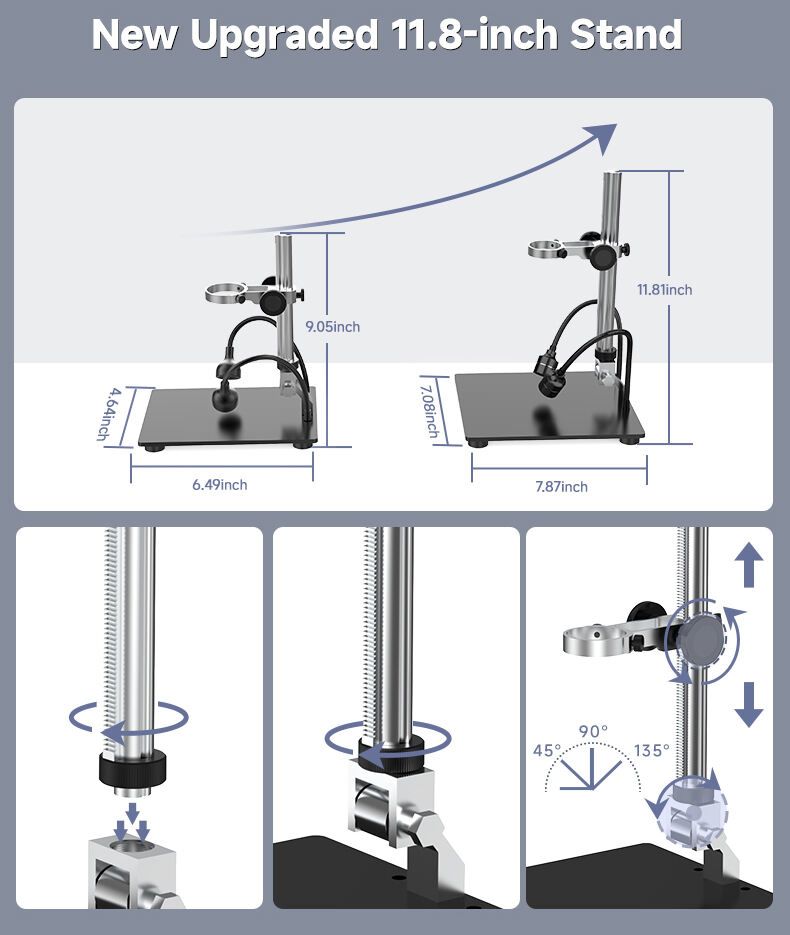

The DM12 HDMI digital microscope elevates microscopic exploration with its expansive 10.1-inch HD IPS screen, offering vibrant colors and a wide 178° viewing angle for an exceptional visual experience. Its powerful 5X to 1500X magnification range, combined with outstanding photo resolution up to 20MP, reveals intricate details in coins, soldering projects, and natural specimens. Versatility is a key strength, featuring both HDMI and USB-C outputs to connect to larger displays for presentations or collaborative learning. A unique audio function with a noise reduction chip allows for clear audio recording in videos. Designed for stability, it includes a taller 12.6-inch stand with a large base and a wireless remote control to operate the microscope—adjusting magnification, capturing photos, and recording videos—without causing screen shake. Optimal illumination is provided by 10 adjustable LED lights (8 around the lens, 2 gooseneck side lights). With its user-friendly design, including one-button capture and a clear manual, the DM12 is an ideal tool for everyone from beginners to professionals, making it perfect for education, hobbies, and precision work.

Applications:

Circuit board repair

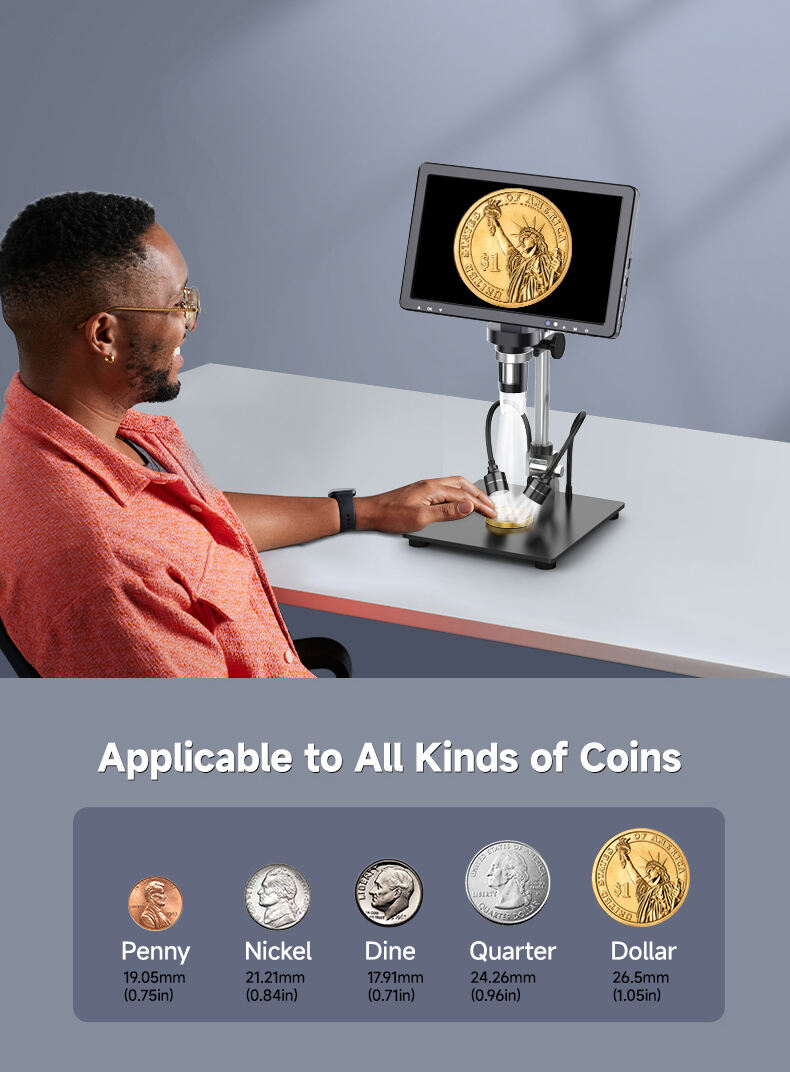

Coin and stamp collecting

Skin inspection

STEM education

Specifications:

Item	Parameters
Product Name	DM12
Screen	10.1 inches IPS display, 1024*600 resolution
Video Maximum Pixel	1080P
Lens Optic Size	1/2.8"
Photo Resolution	20M, 16M, 12M, 8M, 5M, 2M
Video Resolution	1080P, 720P
Video Format	MP4
Focus Mode	Manual
Picture Format	JPG
Illuminant	8 LED lights (brightness adjustable)
Focusing Range	10~40mm（can watch distant view）
PC Resolution and Image Transfer Rate	1280*720/25fps
White Balance	Auto
Exposure	Auto
PC Operating System	Win7, Win8.1, Win10, Mac OS x 12 or higher
Lens Construction	5H+IR
Aperture	F4.5
Lens Angle	16°
Interface and Signal Transmission Mode	Micro / USB 3.0 / HDMI
Operating Temperature	‘-20°C ~ +55°C
Operating Humidity	30%~85%
Working Current	700mA
Power Dissipation	3W
Operating Time	3h
Charging Time	3h
Language	Simplified Chinese, Traditional Chinese, Japanese, English, Korean, French, German, Italian, Russian, Portuguese, Spanish
Polymer lithium battery	103665-3000mAh

Competitive Advantage:

As a source factory, our core competitive advantages are rooted in our integrated manufacturing capabilities. We exercise strict quality control over the entire production process, from sourcing raw materials to final assembly, ensuring high product consistency and reliability. Our direct-to-customer model eliminates intermediary markups, allowing us to offer superior products at highly competitive prices. Furthermore, we maintain strong R&D and customization capabilities, enabling us to adapt quickly to market trends and provide OEM/ODM services to meet specific client requirements. This combination of quality, cost-effectiveness, and flexibility provides our partners with a distinct market edge.
